BH1750FVI is an digital Ambient Light Sensor IC for I2C bus interface. This IC is the most suitable to obtain the ambient light data for adjusting LCD and Keypad backlight power of Mobile phone. It is possible to detect wide range at High resolution. 1 – 65535 lux (lx).
Features
1) I2C bus Interface ( f / s Mode Support )
2) Spectral responsibility is approximately human eye response
3) Illuminance to Digital Converter
4) Wide range and High resolution. ( 1 – 65535 lx )
5) Low Current by power down function
6) 50Hz / 60Hz Light noise reject-function
7) 1.8V Logic input interface
8) No need any external parts
9) Light source dependency is little. ( ex. Incandescent Lamp. Fluorescent Lamp. Halogen Lamp. White LED. Sun Light )
10) It is possible to select 2 type of I2C slave-address.
11) Adjustable measurement result for influence of optical window ( It is possible to detect min. 0.11 lx, max. 100000 lx by using this function. )
12) Small measurement variation (+/- 20%)
13) The influence of infrared is very small.
What is lux
The lux (symbol: lx) is the SI unit of illuminance and luminous emittance, measuring luminous flux per unit area. It is equal to one lumen per square metre. In photometry, this is used as a measure of the intensity, as perceived by the human eye, of light that hits or passes through a surface. It is analogous to the radiometric unit watts per square metre, but with the power at each wavelength weighted according to the luminosity function, a standardized model of human visual brightness perception. In English, “lux” is used in both singular and plural
Typical Lux values
These were taken from Wikipedia
| Examples | |
|---|---|
| Illuminance | Surfaces illuminated by: |
| 0.0001 lux | Moonless, overcast night sky (starlight) |
| 0.002 lux | Moonless clear night sky with airglow |
| 0.27–1.0 lux | Full moon on a clear night[3][4] |
| 3.4 lux | Dark limit of civil twilight under a clear sky |
| 50 lux | Family living room lights (Australia, 1998) |
| 80 lux | Office building hallway/toilet lighting] |
| 100 lux | Very dark overcast day |
| 320–500 lux | Office lighting |
| 400 lux | Sunrise or sunset on a clear day. |
| 1000 lux | Overcast day; typical TV studio lighting |
| 10000–25000 lux | Full daylight (not direct sun) |
| 32000–100000 lux | Direct sunlight |

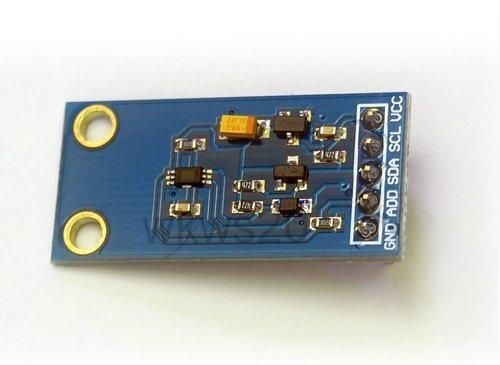

Typically to use this sensor you will need to purchase a module, here is a picture of one

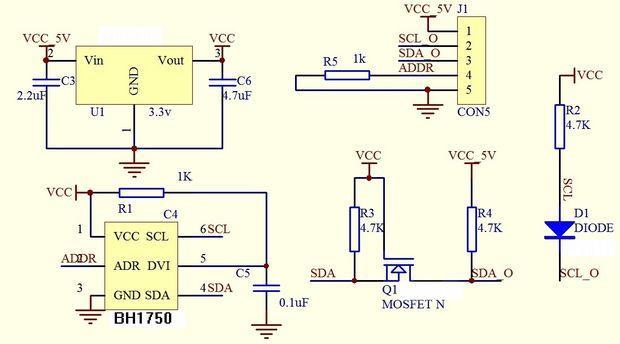

For those that are interested this is a schematic of the module

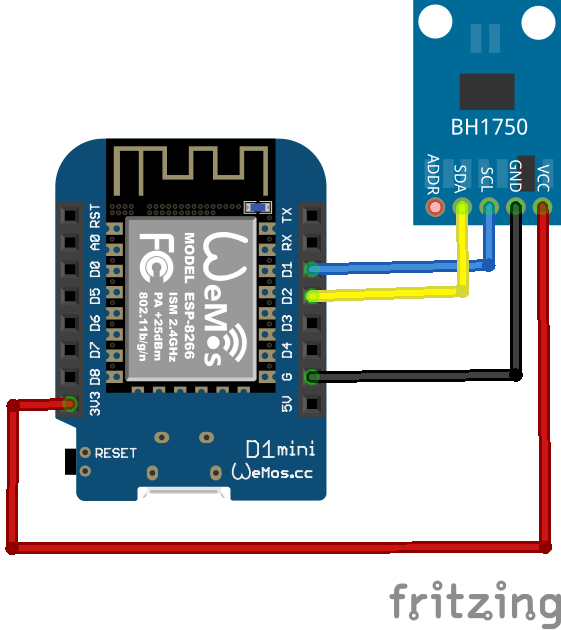

Layout
An easy module to connect being an I2C one
Code
[codesyntax lang=”cpp”]
#include <Wire.h>
#include <math.h>
int BH1750address = 0x23; //i2c address
byte buff[2];
void setup()
{
Wire.begin();
Serial.begin(57600);
}
void loop()
{
int i;
uint16_t val=0;
BH1750_Init(BH1750address);
delay(200);
if(2==BH1750_Read(BH1750address))
{
val=((buff[0]<<8)|buff[1])/1.2;
Serial.print(val,DEC);
Serial.println("lux");
}
delay(150);
}
int BH1750_Read(int address) //
{
int i=0;
Wire.beginTransmission(address);
Wire.requestFrom(address, 2);
while(Wire.available()) //
{
buff[i] = Wire.read(); // receive one byte
i++;
}
Wire.endTransmission();
return i;
}
void BH1750_Init(int address)
{
Wire.beginTransmission(address);
Wire.write(0x10);//1lx reolution 120ms
Wire.endTransmission();
}
[/codesyntax]
Testing
Open the serial monitor and change the light intensity, here is what I saw
1070 lux
5006 lux
7427 lux
8200 lux
8996 lux
8656 lux
6569 lux
150 lux
5 lux
2 lux
2 lux
3 lux
2 lux
10 lux
38 lux
266 lux
259 lux
